  • TruBind TB-S20A Coil Binding Machine with Electric Coil Inserter

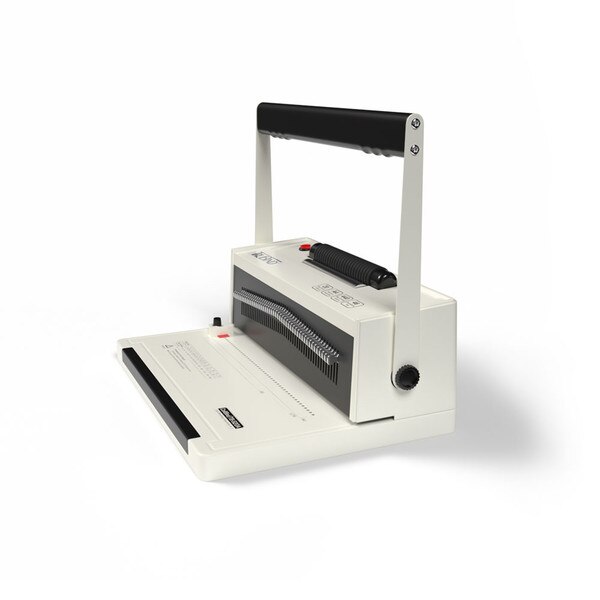

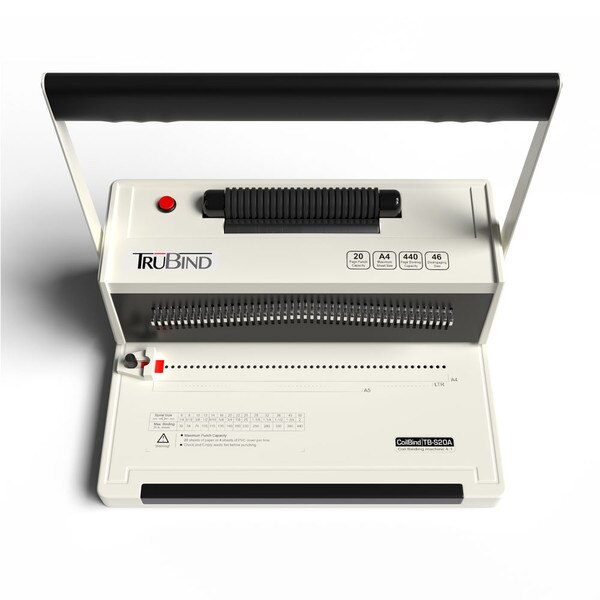

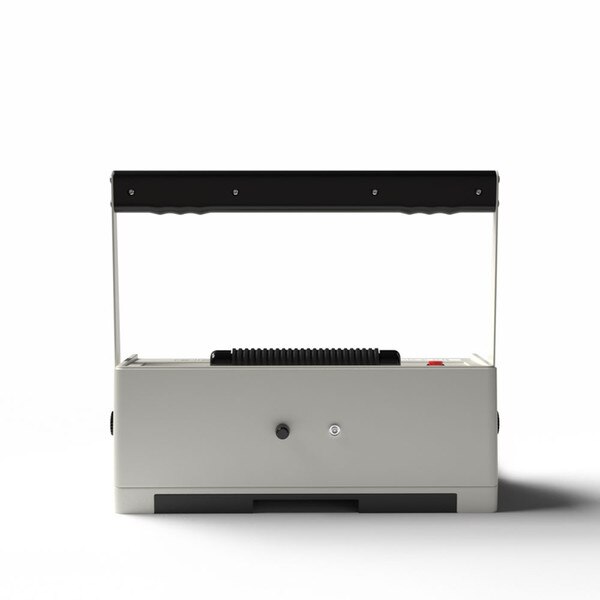

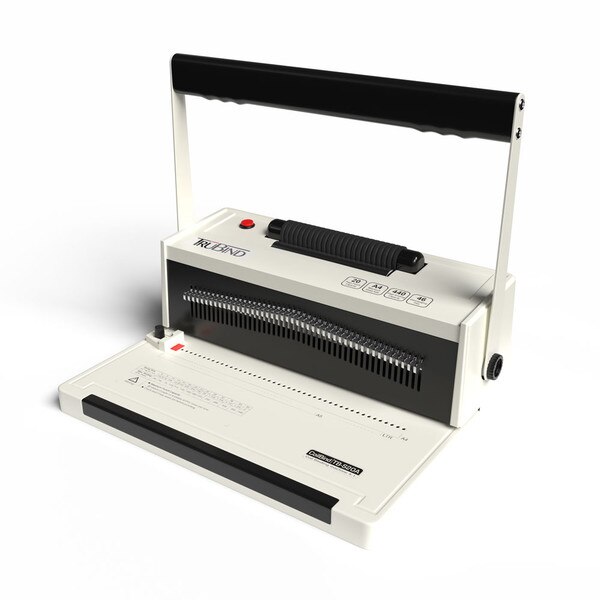

TruBind TB-S20A Coil Binding Machine with Electric Coil Inserter


Looking for an affordable yet reliable spiral binding machine? The TruBind TB-S20A Coil Binding Machine is the one for you!

The TB-S20A boasts a punch capacity of up to 20 sheets (20# paper) at once, which is made even easier with its full handlebar that allows for left-handed, right-handed, or two-handed operation! Its lightweight design allows it to be portable within a workspace, making the TB-S20A an excellent addition to any school or small office environment. This binding machine utilizes 4:1 pitch plastic binding coils which can be inserted by either using the rapidly spinning electric coil roller on top of the machine or manually twisting them into the document. Bind documents up to 2 in. thick with this spiral binding machine!

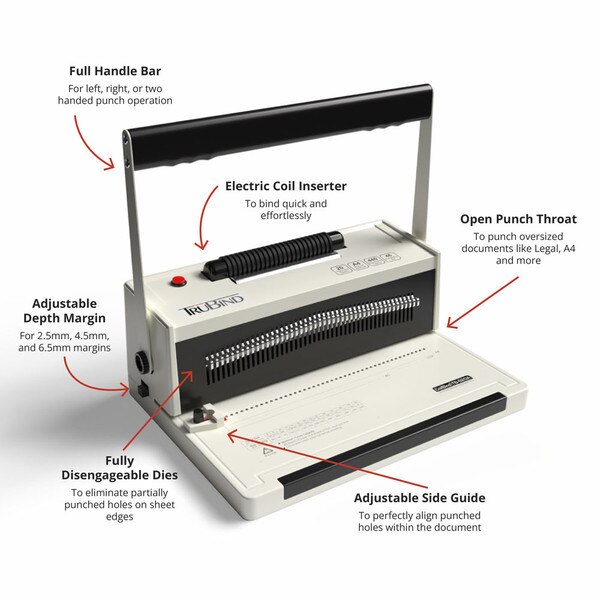

Product Features:

  • Heavy-Duty Coil Crimping Pliers Included
  • Full Handle Bar for left, right, or two-handed punch operation
  • Open Punch Throat

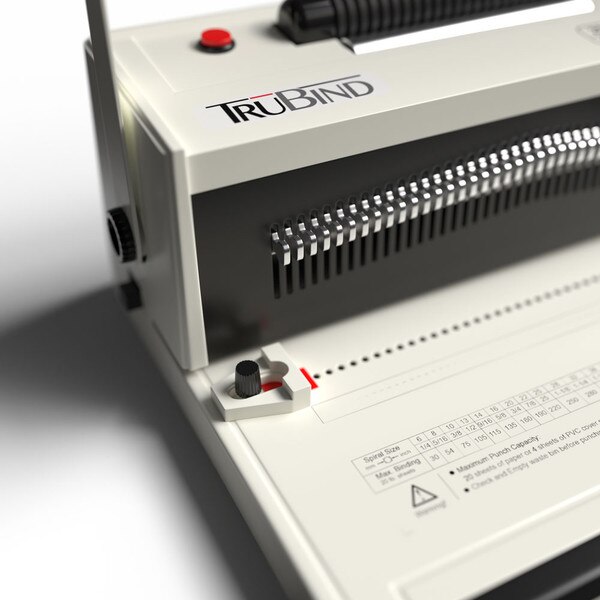

  • Adjustable Side Guide and Depth Margin
  • Full Set of Disengaging Pins eliminates partially-punched holes on the sheet edges

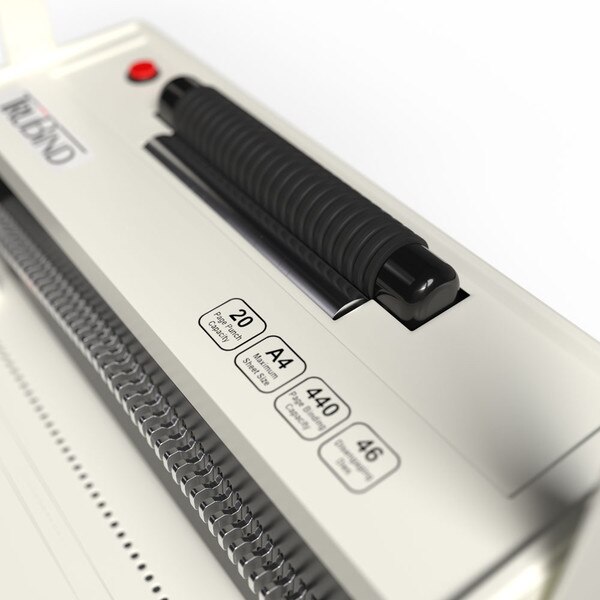

  • Electric Coil Inserter conveniently located on top of the machine
  • Heavy Duty Manual Coil Crimping Pliers are included for finishing off the ends of your coils
  • Warranty: 2 Year Manufacturer's Warranty

Shop All Binding Supplies By Size!

Binding Style:Coil
Pitch Pattern:4:1 (4 holes per in.)
Hole Shape:Round
Punch Operation:Manual
Punch Capacity:20 sheets (based on 20 lb. paper)
Binding Operation:Electric
Binding Capacity:Electric: 7/8 in. (22 mm), 190 sheets
Manual: 2 in. (50 mm), 440 sheets
Max. Binding Length:11.81 in. (A4)
Depth Margin:Adjustable
(2.5mm, 4.5mm, and 6.5mm)
Disengageable Dies:All 46 dies
Dimensions:17.13 in. x 13.19 in. x 8.07 in.
Net Weight:18.3 lbs.
Warranty:2 Years
